TIME AND MESSAGE DISTRIBUTION SYSTEM
Contain of DS 2000:
>DESCRIPTION
>SYSTEM ELEMENTS DESCRIPTION
>SYSTEM FUNCTION DESCRIPTION
>EXAMPLE
|
|
| DS 2000 system is designed for hospitals, hotels, banks and other facilities in order to inform a large number of people at once on the current weather, temperature and other details that are of interest to them. It consists of digital clocks of various shapes, indicator panels, digital hour exchanges and PC.
Digital watches and indicators are implemented 7-segment indicators, or LEDs.
Height of digits with 7-segment indicator is 57 mm and 70 mm LED.
Digital watches and indicators with 7-segment indicators used in the halls and rooms where there is a high brightness level, especially daily, while LED devices are used in areas where the present high level of brightness.
Also, devices with 7-segment indicators, as opposed to the LED devices should be used in cases when the angle is small (less than 45 °).
Digital watches and indicators with numbers greater than 57 mm and 70 mm, were carried out on request. Possible digit height is 100 mm.
Colours of indicators in all the variants can be red and green, with the proviso that in some devices it recommends, for example. the digital watch with a stopwatch (DSS 2040) is commonly used in operating rooms (the current time - green, stopwatch time - red).
All digital watches and indicators from the system DS 2000 has its own microprocessor control, so you can work as an independent or that the synchronization with the master clock (digital hour switchboard DSC 2000). When digital clocks working as a senior, wearing a command to correct time.
Visibility of digital watches and indicators from the system DS 2000 is on average about 25 m.
|
|
SYSTEM ELEMENTS DESCRIPTION |
|
Dimensions: 170 x 280 x 60 |
 |

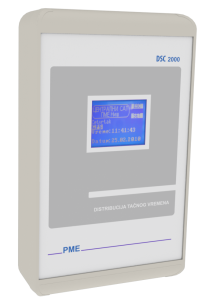

DIGITAL MASTER CLOACK (DSC 2030)
Synchronization to the GPS antenna and receiver through an appropriate interface.
Ensures that Central European Time, without setting winter-summer rates, leap year and the correction due to power failure.
Hour on a digital exchange DCS 2030 can be linked to 255 digital watches, but the line length is not more than 1 km.
This digital hour exchange synchronization clocks in the field every second.
Setup and programming Digital master cloack done via touch display.
Adjustment is made only if for some reason does not work the GPS antenna (GPS offline, etc..), Or in normal conditions should not require any adjustment
|
|
Dimensions:
DS 2011 - (340 x 130 x 60) mm
DS 2012 - (340 x 130 x 95) mm |
|
DIGITAL CLOCK MINUTE (DS 2010)
Displays hours and minutes. May be one or double-sided. One-sided wall-mounted and cable entry from below, while the double-sided ceiling mounted or hanging sideways on the wall, in which case the cable entry is through the vertical or side mounting bracket.
DS 2011 - one-side
DS 2012 - double-sided
|
|
Dimensions:
DS 2021 - (440 x 130 x 60) mm
DS 2022 - (440 x 130 x 95) mm |
|

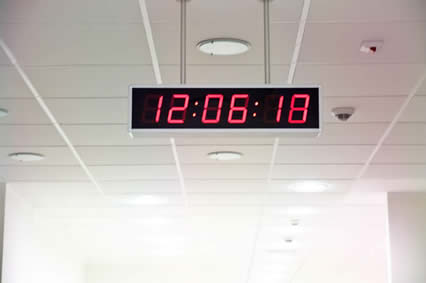

DIGITAL CLOCK SECUND (DS 2020)
Displays hours, minutes and seconds.
May be one-side or double-sided.
DS 2021 - one-side
DS 2022 - double-sided
|
|
Dimensions: 320 x 320 x 95mm |
|
DIGITAL - ANALOG CLOCK (DS 2030)
Hours and minutes displayed in digital form, and second in analog form.
May be one-side or double-sided, and mounted the same as the previous classes.
DS 2031 - one-side
DS 2032 - double-sided |
|
|
Dimensions:320 x 320 x 95mm |
|
DIGITAL CLOCK WITH STOPWATCH (DSS 2040)
Displayed two times, current and stopwatch. Current time is synchronized with digital master clock, and additional time is started by remote control or command of the technical cabinet in the operating room.
Current time is displayed in hours and minutes in green, and additional time is displayed in hours, minutes and seconds in red. A second analog display and allow the user to have the impression that the process is in progress.
It was written for the operating rooms, and can be used in commercial buildings in the meetings etc.
DSS 2043 - wall mounting
DSS 2044 - Wall-mounted
|
|
|
Dimensions:280 x 120 x 60mm |
|
CONCEALED DIGITAL CLOCK (DSU 2050)
Displays hours, minutes and seconds.
It was made for the operating rooms and is adapted for installation in a wall. Synchronization with digital master clock.
If not in the system with DSC, it has a command element for the set (SELECT, -, +) which is mounted on a technical cabinet in the operating room.
|
|
|
Dimensions:280 x 120 x 60mm |
|
CONCEALED DIGITAL STOPWATCH (DSU 2060)
It is designed for operating rooms for the stopwatch timing. Stopwatch time is displayed for hours, minutes and seconds. Manages to command element (START, STOP, RESET) that attaches to the cabinet or technical anaesthesiology Ampel
|
|
|
Dimensions:
DK 2071 - (340 x 130 x 60) mm
DK 2072 - (340 x 130 x 95) mm |
|
DIGITAL CALENDAR (DK 2070)
Showing the days and months in the current year. Days are printed numbers and letters months.
Month are three letters from his name.
May be one-side or two-sided, and is installed just like a digital clock.
DK 2071 - one-side
DK 2072 - two-sided
|
|
|
Dimensions:
DSK 2081-1(650 x 160 x 60)mm
DSK 2082-1(650 x 160 x 95)mm
DSK 2081-2(320 x 320 x 60)mm
DSK 2082-2(320 x 320 x 95)mm
DSK 2081-S(720 x 160 x 60)mm
DSK 2082-S(720 x 160 x 95)mm
|
|
DIGITAL CLOCK WITH CALENDAR (DSK 2080)
Displays the date and time. Show date indicates the date and month in the current year, a time display of hours and minutes for the minute or hour, minute and second in DSK-S.
May be one-side or two-sided and are mounted as well as digital clocks.
DSK 2081-1 - one-side (in one line minutes)
DSK 2082-1 - two-sided (one row minute)
DSK 2081-2 - one-side (in two rows of minute)
DK 2082-2 - two-sided (two-line minutes)
DSK 2081 - S - one-side-second
DSK 2082 - S - two-sided-second.
|
|
|
Dimensions:
DSKT 2081 - (900 x 160 x 60)
DSKT 2082 - (900 x 160 x 95)
|
|
DIGITAL CLOCK WITH CALENDAR AND TEMPERATURE (DSKT 2080)
Displays the date, time and temperature. Printing date indicates the date and month in the current year, a time display of hours and minutes. Temperature is displayed alternately with internal and external, which presents a lit LED indicator in the box or outside the home.
May be unilateral or bilateral and are mounted as well as digital clocks.
DSKT 2081 one-side
DSKT 2082 two-sided
|
|
|
Dimensions:
320 x 160 x 95
|
|
DIGITAL TEMPERATURE INDICATOR (DIT 2090)
Displays the current indoor and outdoor temperature depending on where we draw the temperature probe.
The hospitals are showing outside temperature, and is installed near the exit to the patient at discharge temperatures knew what he expected out of hospital.
May be one-side or two-sided, and is installed just like a digital clock.
DIT 2091 - one-side
DIT 2092 - two-sided |
|
|
Dimensions:
320 x 160 x 95
|
|
INFORMATION PANEL (IP 2100)
INFORMATION PANEL (IP 2100)
Allows the writing of messages. Messages can be fixed or change at fixed time intervals.
For example, the information panel shown here can be every 10 seconds to change prints: gynecology, the current time, date and current temperature.
The order and content of the writing of messages is determined by programming a PC to be connected to the network only until a programming.
More significant is the application of information panels in hotels compared to the hospital, since in such facilities to users transmit more information.
IP 2101 - unilateral
IP 2102 - two-sided |
|
|
